Screen height, measured from the sofa
Set the screen centre on the seated eye height of the people who will watch it, which in most rooms puts it between 40 and 48 inches above the floor. That is a measurement taken in the room, from the seat that is actually used, not a rule of thumb applied from a catalogue.
The reason it matters is that everything else in the design is downstream of it. The equipment compartment goes below or beside the screen, the storage that has to be reached sits within the published unobstructed reach range of 15 to 48 inches, and the shelf heights above follow the screen rather than the ceiling. Get the screen height wrong and every one of those decisions inherits the error.
The published accessibility figures are a useful cross-check rather than a requirement in a private home. A forward reach is limited to 48 inches maximum and 15 inches minimum; where a reach passes over an obstruction up to 20 inches deep the maximum drops to 48 inches, and over an obstruction between 20 and 25 inches deep it drops to 44 inches. Anything on a media wall that gets handled regularly, which means the remote drawer, the games storage and the controls, belongs inside those numbers.
The fireplace problem, stated honestly
A screen above a mantel is above seated eye height and directly in a rising heat plume, which makes it the worst available position for both the viewer and the electronics.
This page says so plainly because it is the single most common request and the single most common regret. A mantel is typically 48 to 54 inches above the floor, so a screen above it starts where the comfortable viewing zone ends. The neck angle is the complaint people articulate; the equipment failure is the one they do not connect to the decision.
Heat, which is what actually kills the equipment
A closed compartment with electronics in it needs air entering low and leaving high, or it becomes an oven and shortens the life of everything inside it.
This is the part of a media wall that cabinetry gets wrong most often, because a sealed, beautifully fitted compartment looks like better work than a vented one. It is not. The design requirement is a continuous path: an inlet at the bottom, usually a vented plinth or a slot at the back of the lowest shelf; a route past each piece of equipment; and an outlet at the top that discharges into the room rather than into another closed void such as a soffit.
| Item | Typical depth to allow | Thermal requirement |
|---|---|---|
| Soundbar | Around 5 inches plus a cable radius behind | Minimal, but it should not sit in the exhaust path of anything else |
| Amplifier or AV receiver | 16 to 18 inches plus 3 to 4 inches of cable radius | The largest heat source in most media walls. Needs clear space above and a genuine outlet. |
| Games console | 14 to 16 inches plus cable radius | Ventilated on its own sides, not boxed tightly. Its own fan needs somewhere to push air. |
| Set-top box or streaming device | 10 to 14 inches plus cable radius | Low output, but it usually needs line of sight for a remote unless the system is networked |
| Network switch or router | 8 to 12 inches | Low output, constant duty. Benefits from the same path as everything else. |
| Subwoofer | 14 to 18 inches, often more | Needs a rigid enclosure around it or it excites the cabinet. Thermally undemanding. |
Depths are design allowances for planning a compartment, not manufacturer specifications. Every job measures the actual equipment, because the deepest item plus its cable bend radius sets the cabinet depth.
The practical rule that follows is that the cabinet depth is set by the deepest item plus the cable radius behind it, which is why a media base is typically 18 to 24 inches deep rather than the 12 inches a bookcase would be. A compartment that fits the box exactly and leaves no room for the plug is a compartment the box does not go into.
Cable routing, planned rather than drilled
Plan a vertical chase from the screen position down to the equipment compartment before the cabinetry is drawn, sized for connectors rather than for bare cable.
The failure mode here is familiar: a beautiful media wall, installed, and then a drill coming out because nobody planned where an HDMI plug would pass. A moulded connector is far larger than the cable behind it, so a hole sized for the cable is useless. Slots and grommets, sized for the largest connector in the system plus a margin, solve it permanently.
- A vertical chase behind the screen position, continuous to the equipment compartment
- Slots or grommets rather than drilled holes, sized for the largest moulded connector in the system
- A rear slot in every shelf so the path stays continuous as equipment moves between shelves
- Separation between mains cable and signal cable where the run is long
- Enough slack coiled in the compartment that a box can be pulled forward for service without unplugging it
- Any new outlet in the chase treated as permitted electrical work, inspected before it is covered
The permit point is worth repeating because it sets the programme. The City of Newport Beach states that moving or adding an electrical outlet requires a permit, and that adding a permanently wired light fixture does too, under the code editions adopted by Ordinance No. 2025-23 on 4 October 2025, effective 1 January 2026. Integrated lighting in a media wall is exactly that kind of fixture. The sequence is electrical first, inspected, then cabinetry, which is the same order set out on the permits and code guide.
Fixing a screen to a wall that is not plumb
The screen mount goes into located structure or a purpose-fixed backing panel, independently of the joinery, and the cabinetry is scribed around it.
The load case is less obvious than it looks. The published mounting benchmark for a wall cabinet is 600 pounds for a cabinet up to 36 inches wide, and a screen weighs a small fraction of that. The issue is leverage: an articulating arm extended 20 inches from the wall multiplies the moment at the fixing far beyond the static weight, and it does so cyclically every time the arm is moved. A fixing that is adequate for a static flush mount can be inadequate for the same screen on an arm.
In Newport Beach the wall itself is usually the complication. In the older parts of the city, plaster over lath gives an uncertain surface and studs that are not always where a detector suggests, and in mid-century houses half an inch of out-of-plumb over ten feet is ordinary. The honest method is to locate structure physically, fit a continuous backing panel where the mount position is uncertain or may change, and then scribe the cabinetry to the wall as a separate operation. That keeps two different jobs, structural fixing and fine fitting, from compromising each other. The scribing method is covered on the cabinet installation page.
The cabinet is part of the sound
A thin-panelled compartment resonates and colours the sound, so where speakers are integrated the enclosure gets thicker material, cross-bracing and its own sealed volume.
This is the part of a media wall that nobody quotes for and everybody notices. A subwoofer sitting in a lightly built base cabinet excites the panels, and the result is a buzz that sounds like a fault in the electronics. The fix is structural: thicker side and back panels in that compartment, a cross-brace or two, and no shared air volume between the speaker compartment and the equipment shelf.
Where the speakers are freestanding, the cabinetry only has to leave them room and a cable route, which is far simpler and usually sounds better. That is worth saying to a client who assumes integration is automatically the premium option. It is the more complicated option; it is only the better one when the enclosure is built for it.
What a media wall costs, and what moves the number
At the published Los Angeles band of $500 to $1,500 per linear foot installed, a 12-foot media wall is $6,000 to $18,000 before any electrical work.
No published source gives a Newport Beach-specific figure for cabinetry, so this page quotes the Los Angeles band as a Los Angeles band. The things that move a media wall up it are predictable:
- Full-height construction to the ceiling rather than a low run with open wall above
- Doors or sliding panels that conceal the screen, which add hardware, alignment work and a second finished face
- Integrated lighting, which adds a permitted electrical element and a driver location to plan
- Deep adjustable shelving with a service-friendly cable path, rather than fixed shelves
- A separately braced speaker enclosure, which is extra material and extra labour in one compartment
- Finish on the interior to the same standard as the exterior, which matters because the doors stand open while the room is in use
The electrical should always be a separate line, because it is a separate trade with its own permit and its own inspection. A single number that silently includes it is a number you cannot compare with anyone else's. The full list of what a quote should contain is on the choosing a cabinet maker guide.
Next steps

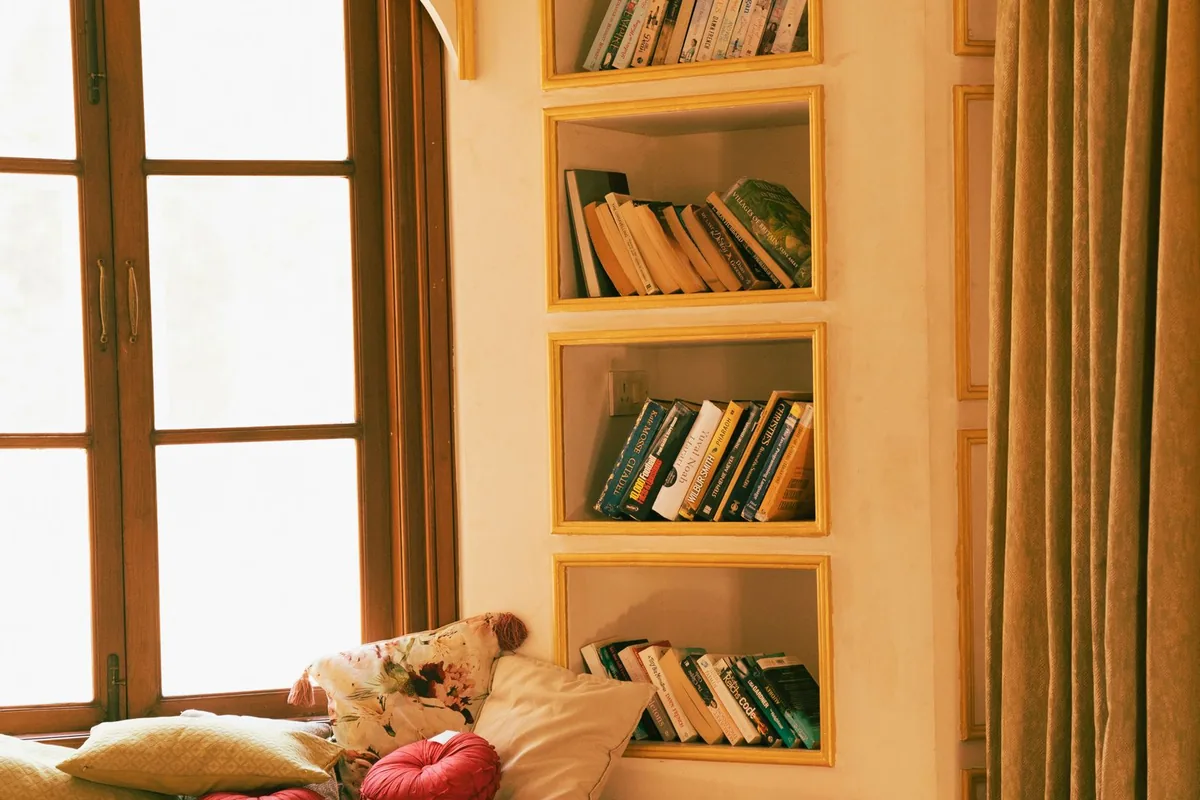

For bookcases, window seats and alcove joinery rather than a screen wall, see built-ins and bookcases. For the hardware that makes the doors behave, see cabinet hardware, and for the whole picture, custom cabinets. A quote starts at the contact page.
